U型玻璃的安全性
U型玻璃安全性研究的必要性

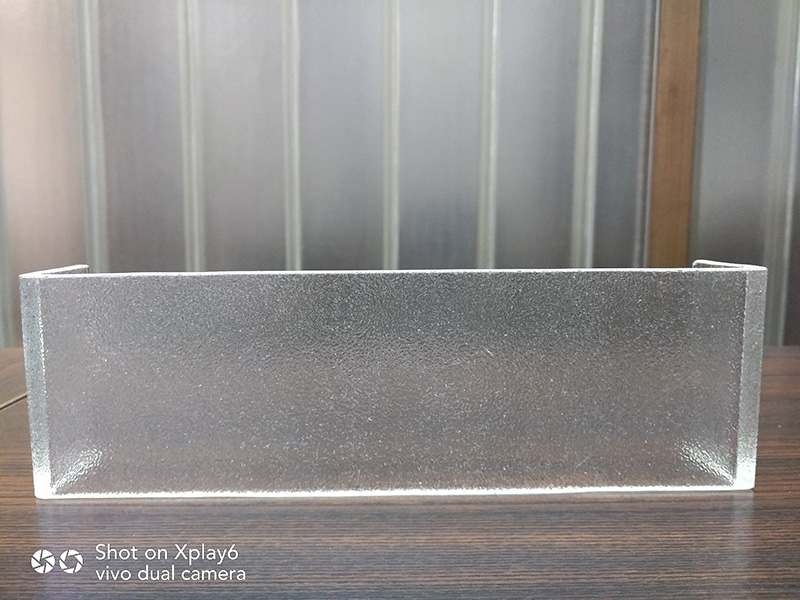

U型玻璃是一種異型玻璃制品，普通的鋼化爐很難對其進行鋼化處理（成品率低和鋼化均勻性差）。因此，在國內絕大部分應用的U 型玻璃是退火玻璃而不是鋼化玻璃。鋼化玻璃是安全玻璃，而退火玻璃不是安全玻璃，因而普通U 型玻璃的應用受到限制。但是U 型玻璃是一種形狀和性質都很特殊的制品，與普通平板玻璃有很大差異。所以，有必要對普通U 型玻璃的安全性做細致的研究，以便為建筑設計、產品應用提供充分的依據。本研究報告所提及的U 型玻璃，均指未經鋼化處理的普通U 型玻璃。
U型玻璃安全性研究的技術路線
玻璃的安全性主要是指玻璃抗破壞的能力及破壞后對人身傷害的程度?，F(xiàn)有有關玻璃的國際及國內標準中，一般用彎曲強度、落球沖擊性能、霰彈袋及雙輪胎沖擊性能3項試驗指標來衡量（鋼化玻璃還有碎片狀態指標）。本研究中，也主要以此3項試驗為基礎，通過合理的試驗方案設置（詳見第四章），來對U 型玻璃的各項有關安全性指標進行詳盡測試。作為對比，將對平板玻璃（浮法玻璃、鋼化玻璃）進行相同條件下的檢驗。通過實驗數據的對比、分析，對U 型玻璃的安全性作出客觀的評價。
U型玻璃安全性試驗研究
承載力及彎曲強度
1.試樣及試驗方案
2.試驗結果（略）
3.試驗結果分析
玻璃承載力和彎曲強度可以表征其抵抗靜荷載的能力，如建筑玻璃的風荷載、雪荷載及結構應力、安裝應力等。承載力是玻璃制品整體破壞前所能承受的最大負荷，是力的單位；抗彎強度是玻璃破壞前單位截面積上所能承受的最大應力。
從U 型玻璃和平板玻璃的彎曲強度，發現翼面朝上時，其強度僅為浮法玻璃強度的1/2左右，是鋼化玻璃強度的1/6左右；翼面朝下時，其強度略大于浮法玻璃的強度，大致是鋼化玻璃強度的1/3。
U型玻璃的強度計算考慮了其兩翼的截面積，加之其壓延生產工藝造成的微缺陷較多，所以強度比浮法玻璃要低?？紤]U 型玻璃在實際建筑設計和應用時，往往只按腹板面積計算承載，所以在此也按同投影面積（即只按承載力和腹板面積）計算了U 型玻璃強度，我們稱之為等效彎曲強度。
按此計算6mm厚U 型玻璃強度，翼面朝上時，其強度為浮法玻璃強度的8倍，為鋼化玻璃強度的3倍；翼面朝下時，其強度為浮法玻璃強度的4倍，為鋼化玻璃強度的1.5倍；7mm厚U 型玻璃強度還要更高一些。
落球沖擊
1.試樣及試驗方案
試驗方案：落球沖擊試驗的目的是為確定玻璃或玻璃構件是否保持某一最低強度或黏結強度（對夾層玻璃）。
在以下標準中涉及了玻璃的落球沖擊。在G B 15763.2-2005《建筑用安全玻璃第2部分：鋼化玻璃》標準中，是用1040g 鋼球在1m 高度進行沖擊；在G B 15763.2-2009《建筑用安全玻璃第3部分：夾層玻璃》標準中，是用1040g 和2260g 鋼球在各個高度沖擊夾層玻璃，看其在玻璃破碎后膠片是否暴露；在G B 9656-2003《汽車安全玻璃》標準中，有兩個落球沖擊試驗：一個是用2260g 鋼球在4m 高度沖擊夾層玻璃，看其是否穿透；一個是用227g 鋼球沖擊夾層或鋼化玻璃，沖擊高度根據玻璃品種和厚度確定，鋼化玻璃的沖擊高度為2m 或2.5m ，夾層玻璃沖擊高度在8.5m ~12m ，看鋼化玻璃是否破碎或夾層玻璃剝落碎片質量是否超標。以上標準均等同或修改采用國際標準，在指標上與國際標準完全一致。
在綜合以上標準要求的情況下，制定如下試驗方案：分別采用227g 、1040g 和2260g 鋼球，對U 型玻璃構件的沖擊點進行沖擊，沖擊高度由低到高逐漸增加，直至構件的上片玻璃破碎或構件穿透。作為對比，對610mm×610mm的浮法玻璃及鋼化玻璃進行落球沖擊試驗，沖擊高度由低到高，直至破碎。
2 .試驗結果
U型玻璃采用壓延方法生產，相對于浮法工藝，其表面及玻璃內部含有更多的微缺陷，因而在受到機械力如沖擊等作用時相對容易損壞。從U 型玻璃沖擊試驗結果和平板玻璃沖擊試驗結果的比較可以看出，U 型玻璃沖擊破碎高度比同厚度的平板玻璃略低，這主要是由該產品生產工藝所決定的。對于由U 型玻璃組合的構件，在腹板中心和邊緣的沖擊破碎高度大致相同。
U型玻璃通常組合成構件使用，當采用搭扣形式組合時，雖然上片的破碎高度和單片時相同，但整個構件的穿透高度大大提高。兩塊6mm或7mm厚U 型玻璃227g 鋼球的穿透高度達到7000mm，相當于6mm鋼化玻璃的抗沖擊水平；1040g 鋼球的穿透高度達到1000mm以上，相當于8mm浮法玻璃的抗沖擊水平；6mm厚U 玻搭扣構件2260g 鋼球的穿透高度達到800mm，相當于6mm浮法玻璃的抗沖擊水平。
當U型玻璃腹板內側貼有有機膜時，227g 鋼球的穿透高度達到12000mm以上，相當于8mm以上鋼化玻璃的抗沖擊水平（受試驗設備限制，12m 是最高沖擊極限）；1040g 鋼球的穿透高度達到7000mm以上，相當于8mm鋼化玻璃的抗沖擊水平。
U型玻璃是一種建筑型材，通過彎折的兩翼達到了普通平板玻璃所沒有的特殊性能：
1.優異的承載能力：翼面朝向影響承載力的大小，翼面受壓應力時U 型玻璃承載力是受張應力時的1.5～2倍。承載力隨玻璃厚度增加而增加，7mm厚U 型玻璃承載力是6mm的1.6～2.2倍。和同投影面積的浮法玻璃及鋼化玻璃相比，U 型玻璃具有優異的承載能力：翼面受壓應力時U 型玻璃承載力是同厚度浮法玻璃的8.8倍，鋼化玻璃的2.8倍；翼面張壓應力時U 型玻璃承載力是同厚度浮法玻璃的4.4倍，鋼化玻璃的1.7倍。
2.高的等效彎曲強度：翼面受張應力時U 型玻璃的彎曲強度是翼面受壓應力時的2倍；強度是材料特性的表征，U 型玻璃的彎曲強度與厚度無關。翼面受張應力時U 型玻璃的彎曲強度與同厚度浮法玻璃相當；翼面受壓應力時U 型玻璃的彎曲強度是同厚度浮法玻璃的1/2。按同投影面積計算的U 型玻璃的彎曲強度，翼面受壓應力時是同厚度浮法玻璃的8倍；翼面受張應力時是同厚度浮法玻璃的4倍。
U型玻璃采用搭扣方式組合使用及貼膜時，提高了構件抗穿透性能：
U型玻璃抗落球沖擊、霰彈袋沖擊及雙輪胎沖擊能力略低于同厚度浮法玻璃。
當U型玻璃搭扣組合使用，尤其是貼有有機膜時，其抗落球尤其是小鋼球穿透能力大大增強，內片玻璃破壞載荷高度遠高于同厚度鋼化玻璃；霰彈袋沖擊及雙輪胎沖擊時，貼膜玻璃構件內片玻璃破壞載荷高度相當于同厚度浮法玻璃。
U型玻璃作為獨立單元組成構件用于建筑，在受到?jīng)_擊破壞時，呈現單元破壞的特征：
即僅沖擊點所在的U 型玻璃破壞，周邊玻璃單元保持完好。相比普通玻璃構件具有破壞范圍小的特點，有助于降低玻璃破碎時對人員的傷害程度。
